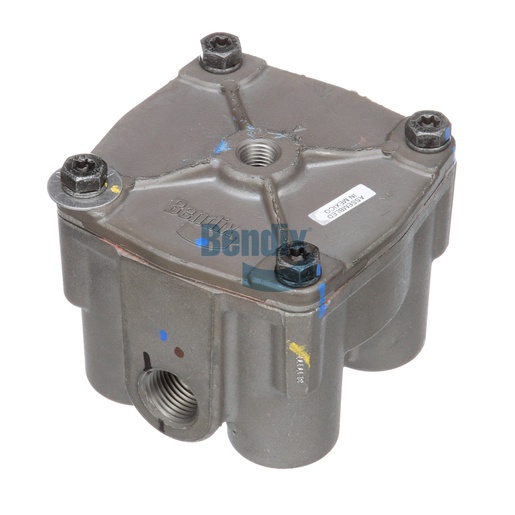

K044761
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is a critical component in any commercial vehicle's air brake system, ensuring optimal performance and safety. Designed to control air pressure and flow, this valve operates efficiently even in extreme temperatures, ranging from -40 °F to 200 °F. With a robust body configuration featuring one supply and four delivery ports, it seamlessly integrates into your vehicle's existing system, enhancing braking reliability and responsiveness. The valve's crack pressure of 4.0 PSI allows for precise control, making it essential for maintaining consistent braking performance under various driving conditions. Constructed with durable materials, it withstands the rigors of the road while minimizing the risk of failure. Whether you're navigating busy urban landscapes or tackling rugged terrains, this Relay Valve provides the assurance you need for safe and efficient braking. Source One Parts Center offers genuine Bendix OEM parts, ensuring you receive high-quality components tailored for your commercial vehicle's specific needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.46 lb
