This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

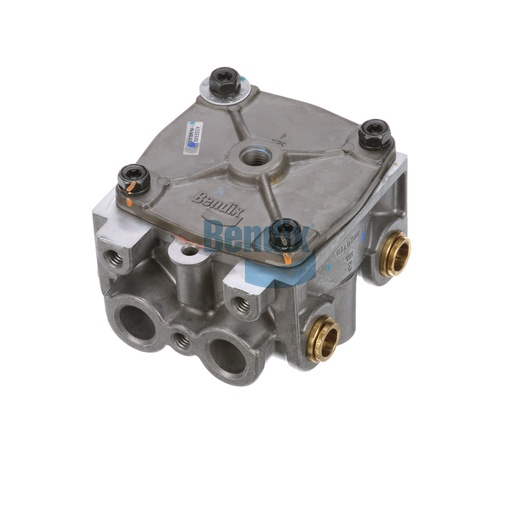

The Relay Valve by Bendix is an essential component of your air brake system, enabling efficient air management for optimal brake performance. This valve is engineered to provide a reliable and precise response to the brake system, ensuring smooth operation and enhanced safety for commercial vehicles. With a crack pressure of 5.5 PSI and multiple ports for air supply and delivery, it effectively manages air flow to maintain consistent braking power. The compact size—measuring 124.0 mm in length and weighing 2.76 lbs—ensures that it can fit into tight spaces while still delivering exceptional performance. Designed for heavy-duty applications, the Relay Valve can withstand extreme operating temperatures ranging from -40°F to 200°F, ensuring durability and longevity. For those in need of reliable parts to maintain their trucks, Source One Parts Center is the premier choice to purchase genuine Bendix OEM components, ensuring you get top-quality parts that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2 PTC
Delivery Port 2
1/2 PTC
Delivery Port 3
1/2 PTC
Delivery Port 4
1/2 PTC
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
101.0 mm (3.98 in)
Height
120.0 mm (4.72 in)
Length
124.0 mm (4.88 in)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.76 lb
