$45.95
$55.14
FINAL SALE. No returns or exchanges.

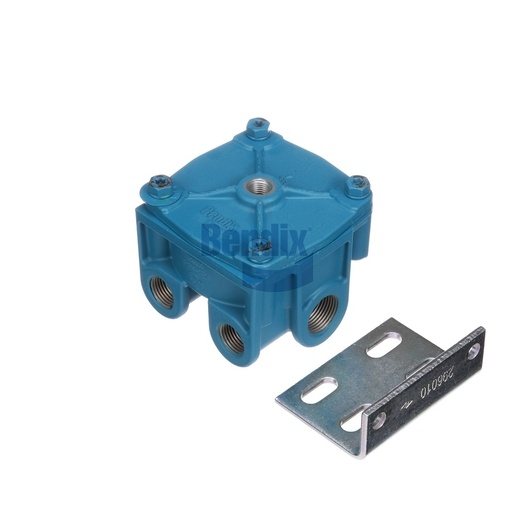

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Improve your truck's air braking system with the Bendix coreless valve, specifically designed for reliable performance in various conditions. This valve effectively controls air delivery and pressure, ensuring optimal braking efficiency and safety. Its durable design can withstand heavy-duty applications, making it a perfect fit for commercial vehicles. With straightforward installation requirements, replacing this valve can be done quickly, reducing downtime. For the best selection of genuine Bendix OEM parts, trust Source One Parts Center to meet your truck's high standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Height
100.0 mm (3.94 in)
Length
102.0 mm (4.02 in)
Width
102.0 mm (4.02 in)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.82 lb
