OR103912

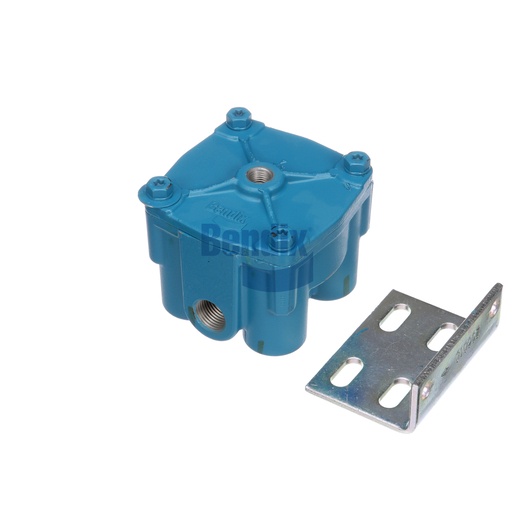

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix coreless valve is an essential component of your vehicle's relay brake system, designed to enhance efficiency and control. With a weight of 3.17 pounds, this valve is engineered to provide reliable air control, ensuring that your braking system operates smoothly and effectively. Its robust construction and advanced design allow for quick and accurate response times, crucial for maintaining safety in commercial vehicles. This valve is compatible with various braking systems and is easy to install, making it a practical choice for fleet maintenance. Choose Source One Parts Center for your Bendix OEM parts, where quality and reliability are guaranteed for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
3.17 lb
