OR104561

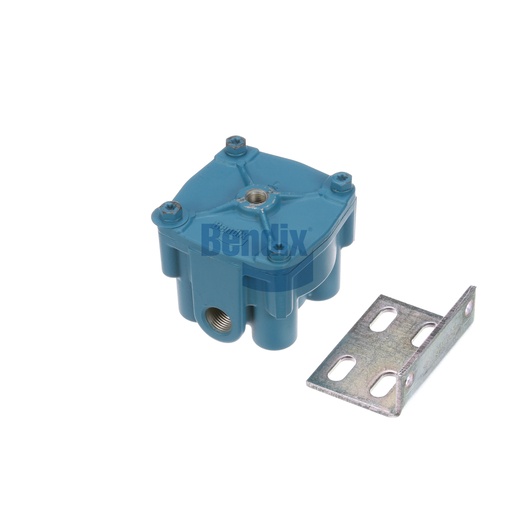

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is a sophisticated component designed to enhance the functionality and safety of your air brake system. This valve efficiently manages air pressure distribution to ensure optimal brake performance, contributing to enhanced vehicle safety and control. With a compact design and robust construction, it operates effectively in various conditions, making it suitable for heavy-duty applications. The valve's precision engineering ensures reliable performance, essential for maintaining the integrity of your braking system. Source One Parts Center is your trusted source for genuine Bendix OEM parts, providing you with components that meet industry standards and enhance the performance of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
3 lb
