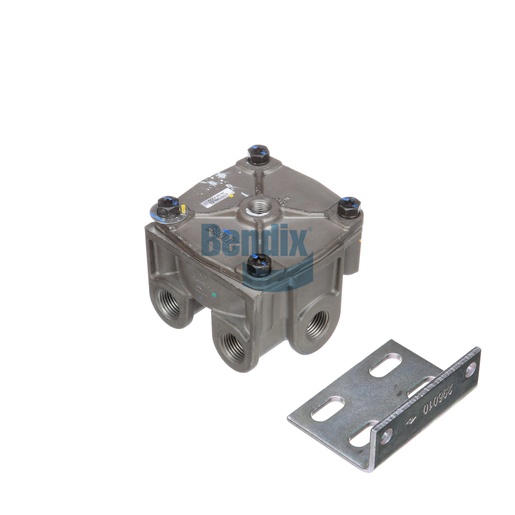

065546
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix relay valve is an essential component in air brake systems, ensuring safe and efficient braking performance. With a net weight of 1.4 kg, this relay valve is designed to control air distribution effectively, enhancing the responsiveness of your braking system. Its durable construction allows it to withstand the rigorous demands of commercial vehicle applications, providing longevity and reliability. This valve features multiple ports for efficient air flow management, which is crucial for optimal brake function. Its straightforward installation process makes it a preferred choice for fleet operators looking to maintain peak vehicle performance. For genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3 lb
