101930N

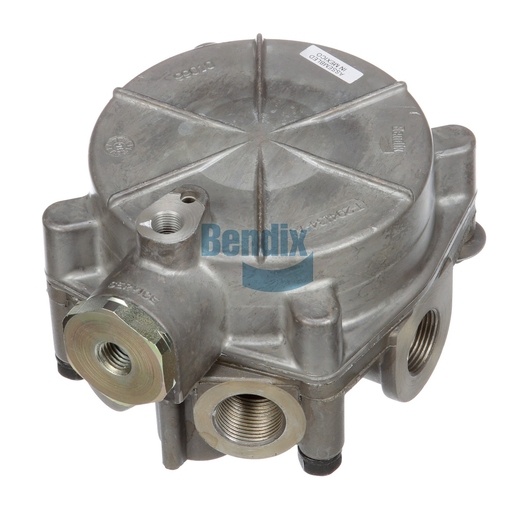

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an integral component designed to enhance the efficiency and reliability of air brake systems in commercial vehicles. With its compact design and weighing just 1.5 kg (3.2 lb), this valve plays a crucial role in regulating air supply to the braking system, ensuring optimal performance under various operating conditions. The relay valve is engineered for quick response times, enhancing overall brake system efficiency and providing precise control over braking power. Its versatile mounting options make it suitable for various applications, while the durable construction guarantees longevity and reliability. When you choose the Bendix Relay Valve, you are investing in a component that significantly contributes to vehicle safety and performance. Source One Parts Center is the ideal place to purchase genuine Bendix OEM parts, offering you the highest standard of quality for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Height
105.2 mm (4.14 in)
Width
117.3 mm (4.62 in)
Length
151.1 mm (5.95 in)
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 3
Closed Port
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Balance Port
M10 X 1-6H THD
Service Port
M12 X 1.5-6H THD
Delivery Port 1
M22 X 1.5-6H THD
Delivery Port 2
M22 X 1.5-6H THD
Supply Port 1
M22 X 1.5-6H THD
Supply Port 2
M22 X 1.5-6H THD
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.2 lb
