102103

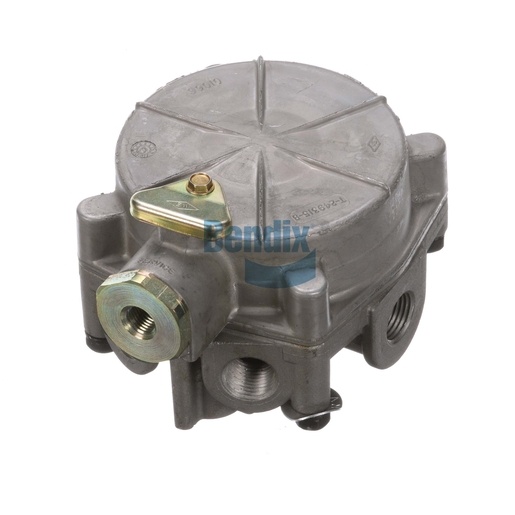

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a critical component in air brake systems, designed to enhance the efficiency and responsiveness of braking action in commercial vehicles. This valve, weighing 0.6 kg, is engineered for reliability and performance, ensuring that air is delivered promptly and accurately to the braking system. Its durable design withstands the rigors of heavy-duty use, making it an essential part for fleet maintenance. With features that ensure quick response times, this relay valve contributes significantly to overall vehicle safety. When looking for genuine Bendix OEM parts, Source One Parts Center is the best source to guarantee quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Delivery Port 3
1/4-18 NPT (Plugged)
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Width
118.0 mm (4.65 in)
Length
152.0 mm (5.98 in)
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
1.37 lb
