103010R

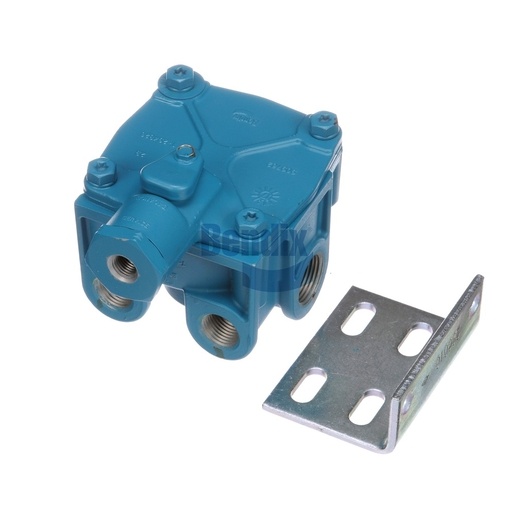

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential component in the air brake system, responsible for controlling air flow and ensuring optimal braking performance. This valve features a dual delivery port, allowing for quick response times and efficient braking. Designed to operate in extreme temperatures, with a maximum of 200°F (93°C) and a minimum of -40°F (-40°C), it is built to withstand the rigors of commercial trucking. Weighing only 1.3 kg (2.78 lb), this relay valve is compact yet powerful, making it ideal for a range of applications in heavy-duty vehicles. Its installation is straightforward, and it plays a critical role in maintaining safety and reliability on the road. For unmatched quality and reliability, Source One Parts Center is the best place to purchase genuine Bendix OEM parts for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.78 lb
