103028R
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

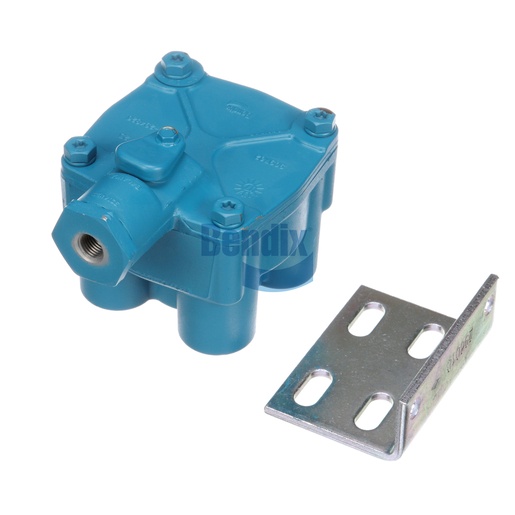

The Relay Valve from Bendix is designed to enhance the efficiency and responsiveness of your air brake system. This precision-engineered valve features multiple delivery and supply ports, allowing for optimal air management during braking operations. With a crack pressure of 4.0 PSI and a maximum operating temperature of 200°F, this valve is built to withstand the demanding conditions typical of commercial vehicle use. Weighing 3.31 pounds, it is lightweight yet robust, ensuring easy installation and long-lasting performance. This component plays a crucial role in maintaining safe braking conditions, making it a vital addition to your vehicle's air system. For the best selection of genuine Bendix OEM parts that guarantee reliability, trust Source One Parts Center as your go-to source.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Control Port Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.31 lb
