103294R

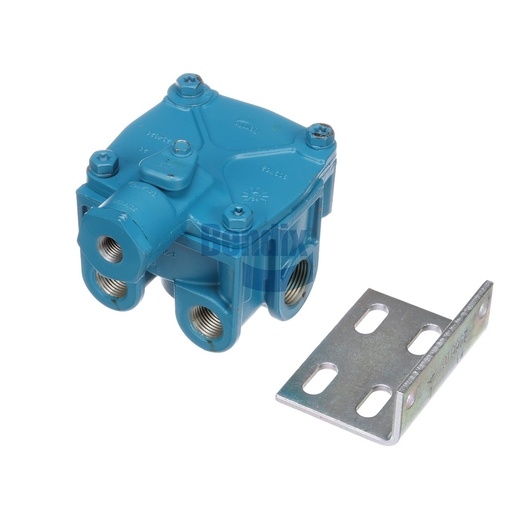

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential component in the air brake system, responsible for controlling air flow and pressure to the brake chambers. This valve ensures that the brakes engage and release smoothly, providing a responsive driving experience. Designed for durability and reliability, the relay valve is built to withstand harsh operating conditions while delivering consistent performance. Its advanced design minimizes the risk of leaks and contributes to the overall efficiency of your braking system. By maintaining optimal air pressure, this valve helps improve vehicle safety and reduces wear on brake components, ultimately extending their lifespan. Regular maintenance and timely replacement of the relay valve are crucial for ensuring the effectiveness of your air brake system. Source One Parts Center is your trusted partner for genuine Bendix OEM parts, providing unparalleled quality for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.38 lb
