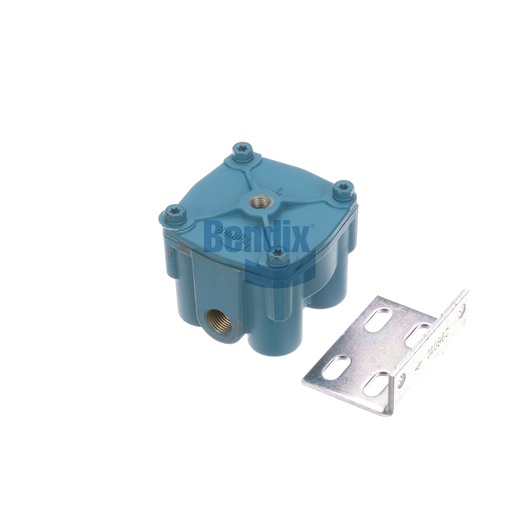

103912R
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is an essential part of Bendix's air brake system, ensuring that air pressure is effectively managed across the braking system. This component is designed to enhance the responsiveness and reliability of your vehicle's brakes, providing a safer driving experience. Featuring a durable build that can endure the demands of heavy-duty applications, this relay valve helps facilitate quick pressure transitions, crucial for efficient braking action. Its precise engineering allows for consistent performance, even in challenging environments. Source One Parts Center is your best option for acquiring authentic Bendix OEM parts, guaranteeing high-quality and reliable components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
3.13 lb
