DESCRIPTION

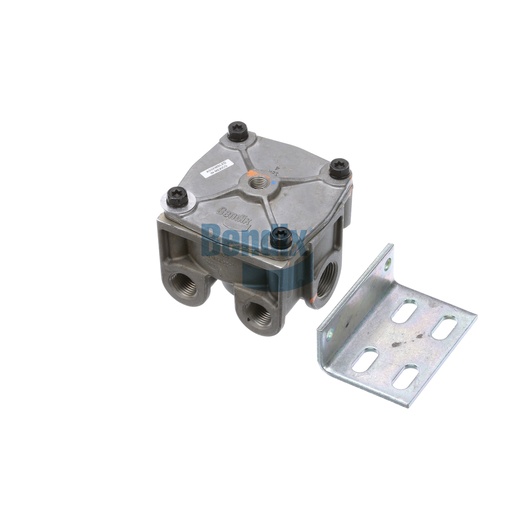

The Relay Valve from Bendix is engineered to enhance the performance of your air brake system by precisely managing air pressure distribution. This vital component helps ensure that your vehicle's brakes respond accurately and promptly, contributing to overall safety and performance. Built to endure the rigorous demands of the road, this relay valve is designed for durability and reliability, making it an essential part of any heavy-duty truck maintenance routine. Its efficient operation helps reduce wear on braking components, prolonging their lifespan and ensuring effective braking action in various conditions. Source One Parts Center is the best place to find genuine Bendix OEM parts for your commercial vehicles, ensuring you receive top-quality products.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
2.93 lb
