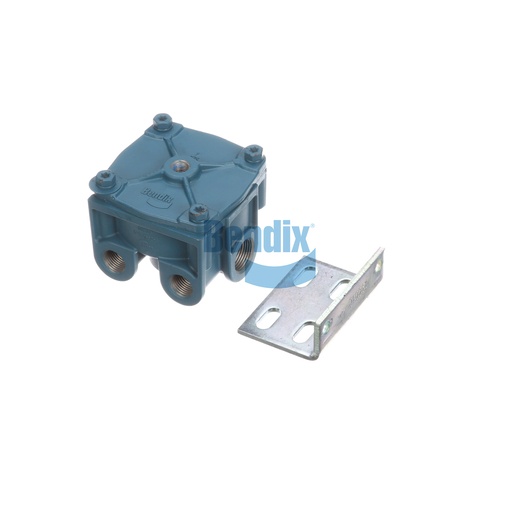

104165R
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve from Bendix is a crucial component in air brake systems, specifically designed to enhance the performance and reliability of your braking system. This relay valve is built to last, featuring a robust design that can withstand demanding commercial environments. It operates effectively within a broad temperature range, ensuring consistent performance in both hot and cold conditions. The valve facilitates quick response times, improving braking efficiency and safety on the road. Weighing 1.3 kg, it is lightweight for easy installation without compromising durability. When you invest in this genuine Bendix OEM Relay Valve, you are ensuring the highest standards of quality and reliability for your vehicle. Source One Parts Center is the best place to find authentic Bendix parts, supporting your commitment to safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
2.93 lb
