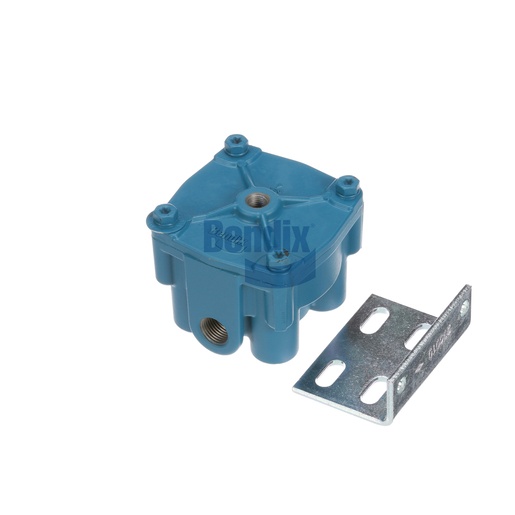

104561R
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix relay valve is a crucial component in the air brake system, ensuring optimal pressure control and system performance. This high-quality valve, designed for air brakes, enhances the reliability of braking systems in commercial vehicles. Weighing approximately 1.4 kg (2.98 lb), it features multiple ports for efficient air flow management, crucial for the safe operation of heavy-duty trucks. Engineered in Mexico, this valve can withstand extreme temperatures, ensuring consistent performance in various driving conditions. Its robust construction and reliable operation make it an essential choice for maintaining safety on the road. When you need genuine Bendix parts, Source One Parts Center offers the best selection of OEM components for your commercial vehicles, ensuring you receive the highest quality products.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.98 lb
