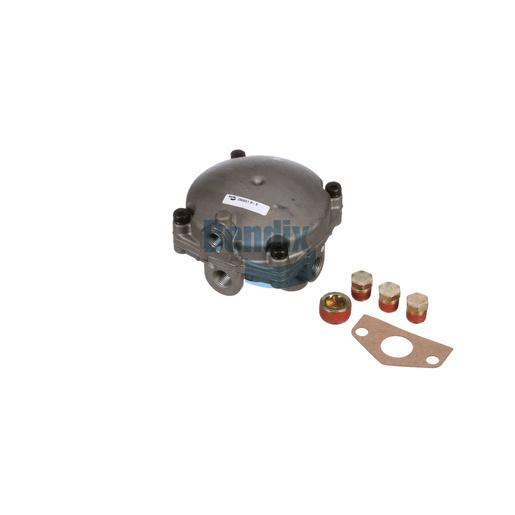

280651N
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your vehicle's braking system with the Bendix Relay Valve, a vital component designed to improve air brake performance and efficiency. With a compact net weight of 1.3 kg, this valve features a unique standard flange mount and is engineered to provide precise control over air pressure distribution in your truck's braking system. Capable of withstanding temperatures ranging from -40°F to 200°F, it is built to handle the challenging conditions of commercial vehicle operation. The Relay Valve aids in the quick release of air pressure during braking, ensuring smoother and more responsive brake action, which is crucial for maintaining safety on the road. This part is manufactured in Mexico and complies with industry standards, making it a reliable choice for fleet maintenance and repairs. Trust Source One Parts Center for genuine Bendix OEM parts, ensuring you receive high-quality components that enhance your vehicle's reliability and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Service Port
1/4-18 NPT
Width
117.3 mm (4.62 in)
Length
127.8 mm (5.03 in)
Service Port Orientation (CW from Flange)
180°
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 2
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Supply Port 1
3/8-18 NPT
Harmonized System (HS) Code
848120
Height
98.8 mm (3.89 in)
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.76 lb
