281647

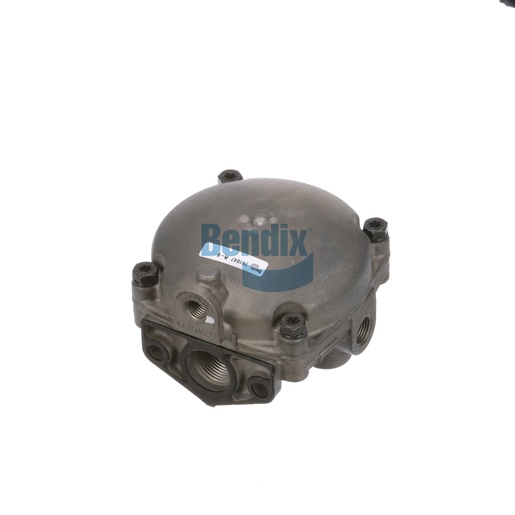

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix relay valve is a critical component in the air braking system, ensuring proper brake application and release. This valve is designed to provide precise control over air pressure, allowing for smoother and safer braking operations. With a lightweight design and durable construction, it is ideal for heavy-duty applications, making it a reliable choice for commercial vehicles. By choosing genuine Bendix parts from Source One Parts Center, you ensure that your braking system operates efficiently, enhancing safety and performance on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Service Port Orientation (CW from Flange)
0°
Service Port
1/4-18 NPT
Width
117.3 mm (4.62 in)
Length
127.8 mm (5.03 in)
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 2
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Supply Port 1
3/8-18 NPT
Harmonized System (HS) Code
848120
Height
98.8 mm (3.89 in)
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.2 lb
