281832

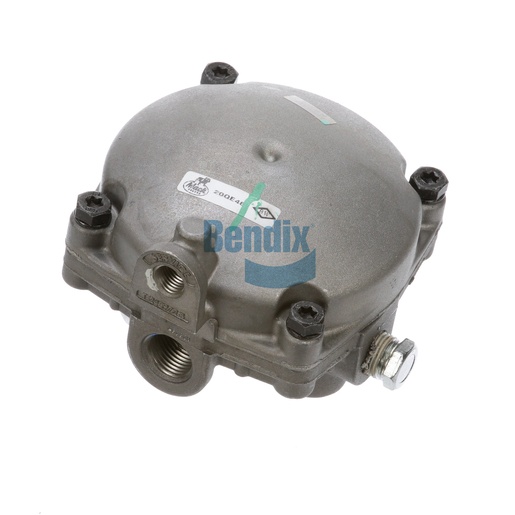

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a critical component in your truck’s air brake system, designed to enhance the efficiency and responsiveness of your braking performance. This valve plays a key role in regulating air pressure, ensuring that your brakes engage smoothly and effectively when needed. Weighing only 1.1 kg, it features a compact design that allows for easy installation and maintenance, making it a practical choice for fleet operators. The Bendix Relay Valve is engineered to withstand the demanding conditions of commercial trucking, ensuring reliability and durability throughout its service life. By integrating this valve into your braking system, you can enhance safety and performance on the road. For genuine Bendix OEM parts, Source One Parts Center is the top choice, providing unmatched quality and customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Service Port
1/4-18 NPT
Width
122.2 mm (4.81 in)
Length
127.8 mm (5.03 in)
Service Port Orientation (CW from Flange)
180°
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Delivery Port 2
3/8-18 NPT (Plugged)
Delivery Port 3
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Height
98.8 mm (3.89 in)
Supply Port 2
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.36 lb
