283033N

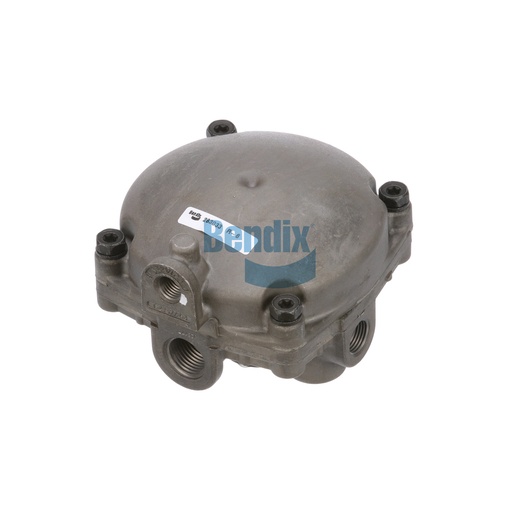

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential component for any commercial vehicle's air brake system, providing critical functionality in regulating air pressure for optimal braking performance. Designed to enhance your vehicle's braking efficiency, this valve operates smoothly to ensure that air pressure is consistently delivered to the brake chambers, allowing for reliable stopping power. With a robust construction and weighing only 1.1 kg, it is built to withstand the rigors of heavy-duty applications, ensuring durability and longevity. This valve's precision engineering allows for easy installation and maintenance, making it a favorite among fleet managers and mechanics. By incorporating the Bendix Relay Valve into your system, you ensure a safer and more responsive braking experience, crucial for both driver safety and cargo security. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center is your best option, delivering exceptional quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Service Port
1/4-18 NPT
Width
117.3 mm (4.62 in)
Length
127.8 mm (5.03 in)
Service Port Orientation (CW from Flange)
180°
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 2
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Height
98.8 mm (3.89 in)
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.45 lb
