283940N

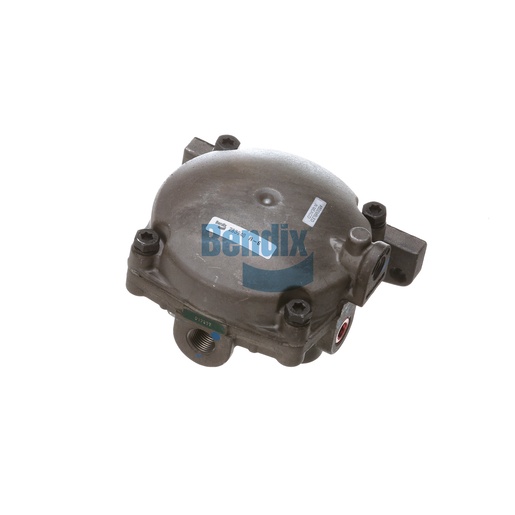

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve from Bendix is an essential component designed to enhance the functionality and efficiency of your vehicle's air brake system. This valve features a compact design that facilitates easy installation and is engineered to provide precise control over air flow, ensuring optimal brake responsiveness. With a robust construction that can withstand harsh operating conditions, this relay valve operates effectively across a wide temperature range from -40°F to 200°F. Its durable materials ensure longevity, making it a reliable choice for maintaining your vehicle's braking performance. The valve’s design allows for rapid activation, critical for ensuring safety during emergency braking situations. For those searching for genuine Bendix OEM parts, Source One Parts Center is the premier destination, providing high-quality components that meet the highest standards of excellence.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Service Port
1/4-18 NPT
Length
131.1 mm (5.16 in)
Width
144.3 mm (5.68 in)
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Supply Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT (Plugged)
Delivery Port 3
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Height
93.6 mm (3.69 in)
Supply Port 2
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Special Flange Mount - Ø 0.41 IN (4x)
Weight
2.75 lb
