283940R

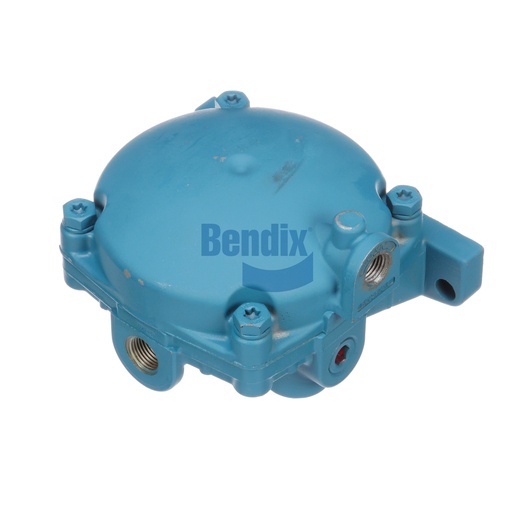

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is designed to optimize the air braking system in commercial vehicles, providing precise control and responsiveness during operation. This component plays a crucial role in ensuring that the braking system functions effectively, allowing for smooth and reliable stops under various driving conditions. Engineered with durability in mind, the relay valve features a robust construction that can withstand the rigors of heavy-duty use. Its design allows for rapid response times, enhancing driver safety and vehicle performance. With a maximum operating temperature of 200°F, it is built to perform in extreme environments. For those looking to maintain their commercial vehicles with trusted components, Source One Parts Center is the best source for authentic Bendix OEM parts, ensuring you receive high-quality replacements that meet rigorous industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Service Port
1/4-18 NPT
Length
131.1 mm (5.16 in)
Width
144.3 mm (5.68 in)
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Supply Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT (Plugged)
Delivery Port 3
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Height
93.6 mm (3.69 in)
Supply Port 2
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Special Flange Mount - Ø 0.41 IN (4x)
Weight
2.59 lb
