286370N

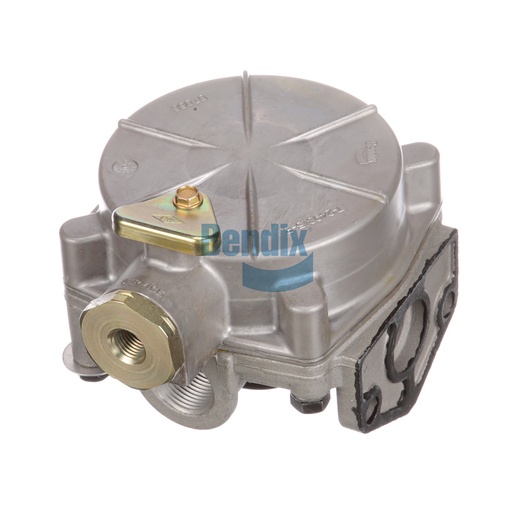

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is engineered to enhance the performance of your air brake system by regulating air pressure effectively and ensuring prompt brake application. Weighing approximately 3.09 lbs, this compact valve is designed for easy installation and seamless integration into your vehicle's existing braking system. Its durable construction makes it suitable for heavy-duty use, providing long-lasting reliability in demanding conditions. With multiple ports for efficient air flow management, this relay valve ensures your braking system responds quickly and accurately. Regular maintenance and timely replacement of the relay valve are essential for optimal brake function and safety. Source One Parts Center is your trusted source for genuine Bendix parts, ensuring you receive high-quality components that meet OEM specifications.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/4-18 NPT
Service Port
1/4-18 NPT
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Length
117.0 mm (4.61 in)
Width
148.0 mm (5.83 in)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848110,848120
Service Port Orientation (CW from Flange)
90°
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.09 lb
