286370R

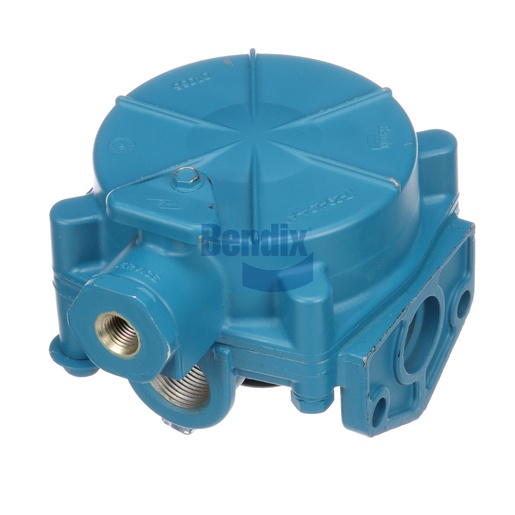

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is a key component in your truck's air brake system, facilitating efficient airflow management for optimal braking performance. Designed for durability, this valve features a standard flange mount and can operate effectively in temperatures ranging from -40°F to 200°F. Its compact design simplifies installation, making it suitable for various vehicle types. The relay valve ensures that the braking system responds promptly, enhancing safety and control during operation. For those in need of reliable and genuine Bendix OEM parts, Source One Parts Center stands out as the top choice, offering superior quality for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/4-18 NPT
Service Port
1/4-18 NPT
Balance Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.09 lb
