286371N

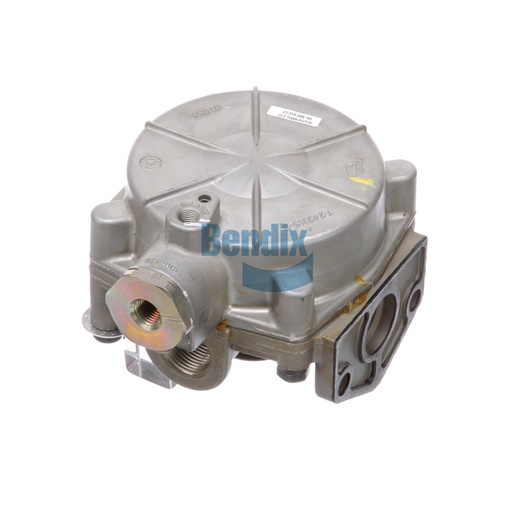

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is engineered for optimal air management within brake systems, ensuring that air pressure is efficiently directed to the appropriate components. This valve is designed to provide reliable performance in demanding conditions, making it essential for commercial vehicles that rely on precision braking. With a robust construction and a maximum operating temperature of 200°F, it is built to endure the rigors of the road. Its thoughtful design includes multiple ports for easy installation and integration into existing systems, allowing for flexibility in various applications. Weighing 1.5 kg, it is a durable choice that doesn't compromise on performance. For genuine Bendix OEM parts, Source One Parts Center stands out, offering quality components that enhance your vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Delivery Port 3
1/4-18 NPT (Plugged)
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Width
117.3 mm (4.62 in)
Length
151.1 mm (5.95 in)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 2
3/4-14 NPT
Supply Port 1
3/4-14 NPT (Plugged)
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.31 lb
