286371R

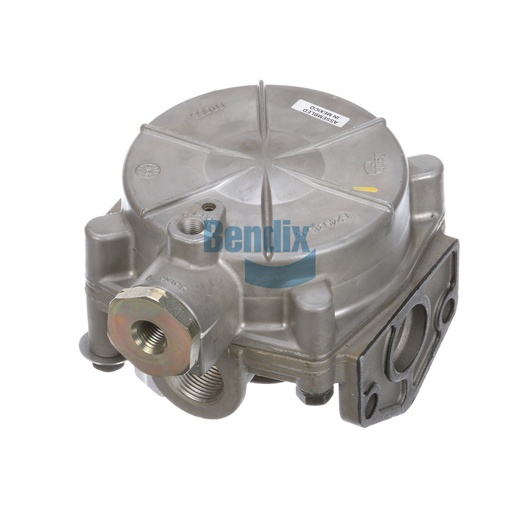

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve by Bendix is crucial for controlling air brake systems, providing precise control over brake actuation and release. Its robust design ensures reliable performance under varying conditions, with a maximum operating temperature of 200°F and a minimum of -40°F, making it suitable for a wide range of climates. The relay valve features a standard flange mount that facilitates easy installation while the 3.0 PSI crack pressure ensures timely brake response. With ports designed for optimal airflow and functionality, this valve enhances the overall braking efficiency of your commercial vehicle. Investing in this component means ensuring your braking system performs at its best, contributing to enhanced safety and operational reliability. Source One Parts Center is the premier source for genuine Bendix OEM parts, ensuring you receive products that deliver exceptional performance and durability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Delivery Port 3
1/4-18 NPT (Plugged)
Balance Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 2
3/4-14 NPT
Supply Port 1
3/4-14 NPT (Plugged)
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.31 lb
