286892

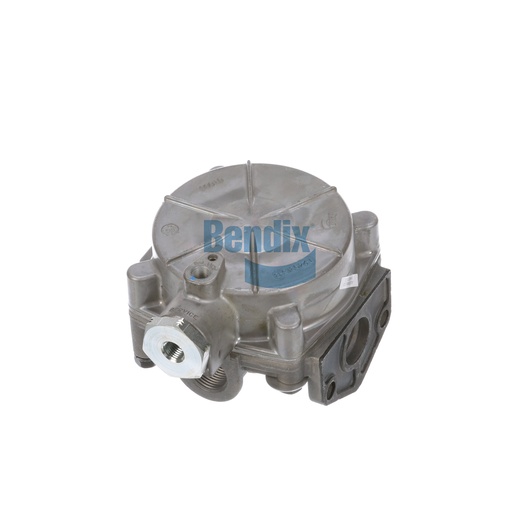

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential component of your truck’s braking system, providing reliable control over air pressure to ensure optimal brake performance. Designed for easy installation, this relay valve is engineered to regulate the air supply effectively, allowing for quick and responsive braking. With a compact design and multiple ports, it fits seamlessly into various pneumatic brake systems, enhancing overall efficiency. This valve operates within a temperature range suitable for demanding environments, ensuring durability and longevity. By maintaining the appropriate pressure levels, this relay valve significantly improves safety on the road, particularly in heavy-load situations. For those in need of reliable Bendix OEM parts, Source One Parts Center is the best choice, offering superior products and exceptional customer service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Delivery Port 3
1/4-18 NPT (Plugged)
Balance Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 2
3/4-14 NPT
Supply Port 1
3/4-14 NPT (Plugged)
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.33 lb
