DESCRIPTION

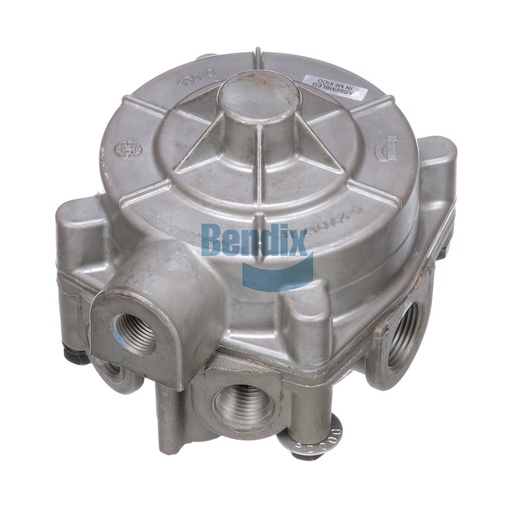

The Bendix Relay Valve is a vital component in your vehicle's air brake system, designed to provide precise control and effective braking performance. With a net weight of 1.3 kg, this valve features a durable design that ensures reliability under demanding conditions. Its ability to manage air pressure effectively makes it crucial for maintaining optimal braking functionality, especially in heavy-duty applications. Easy installation and robust construction further enhance its appeal, making it a popular choice for fleet maintenance. For genuine Bendix parts, Source One Parts Center is your trusted source, delivering top-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Crack Pressure
0.0 PSI
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/4-18 NPT
Width
117.3 mm (4.62 in)
Height
119.1 mm (4.69 in)
Length
143.5 mm (5.65 in)
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Service Port
3/8-18 NPT
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RD000
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.87 lb
