DESCRIPTION

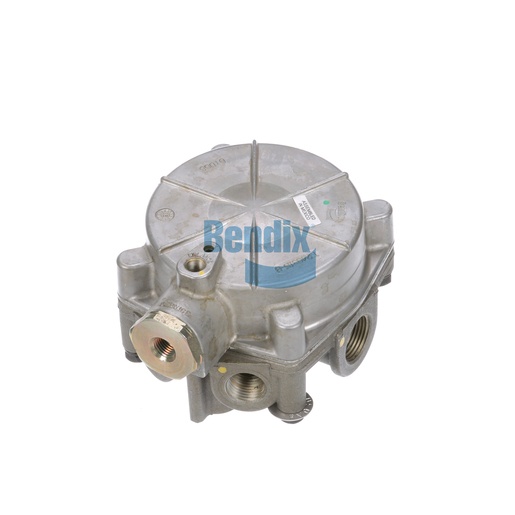

The Bendix Relay Valve is a vital component for enhancing the efficiency of your air braking system. This valve ensures precise control of air flow to the brake system, allowing for responsive and effective braking performance. With a compact design and robust construction, this relay valve is engineered to withstand the demands of heavy-duty applications while operating effectively across a wide temperature range. Its lightweight nature facilitates easy installation, making it suitable for various vehicle configurations. The valve's ability to activate quickly is crucial for maintaining safety during emergency situations, as it ensures immediate brake response. For those looking for high-quality Bendix OEM parts, Source One Parts Center is the best source, ensuring you receive reliable components that enhance your vehicle's braking efficiency.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/4-18 NPT
Service Port
1/4-18 NPT
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Width
117.3 mm (4.62 in)
Length
151.1 mm (5.95 in)
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.09 lb
