287260R

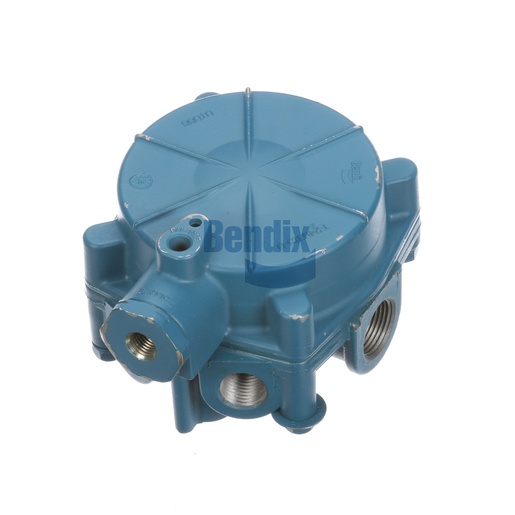

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is designed for optimal air brake performance in commercial vehicles. This robust valve efficiently regulates the air supply to the braking system, ensuring quick reaction times and reliable braking power. With a maximum operating temperature of 200°F, it is built to withstand extreme conditions while maintaining performance integrity. Its standard flange mount design allows for easy installation, making it a preferred choice for fleet maintenance. This relay valve not only enhances safety by providing consistent braking but also contributes to the overall efficiency of your vehicle's air system. For the best selection of genuine Bendix OEM parts, choose Source One Parts Center, where quality and reliability meet your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/4-18 NPT
Service Port
1/4-18 NPT
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Width
117.3 mm (4.62 in)
Length
151.1 mm (5.95 in)
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.09 lb
