287277

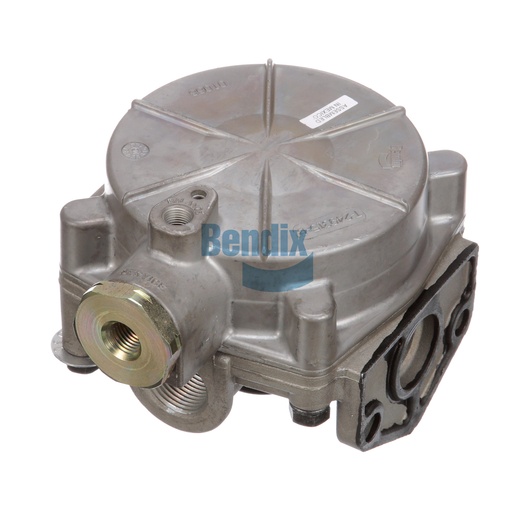

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is engineered to provide precise control over air brake systems, enhancing the safety and performance of your commercial vehicle. With a design that supports a maximum operating temperature of 200°F and a minimum of -40°F, this valve is built to perform reliably under varying conditions. Its flange mount design allows for straightforward installation, while the balanced port system ensures consistent airflow for effective braking. This relay valve is crucial for maintaining proper brake pressure and response times, contributing to overall vehicle safety. Choose Source One Parts Center for your genuine Bendix OEM parts needs, where quality and customer satisfaction are our top priorities.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Delivery Port 3
1/4-18 NPT (Plugged)
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Width
118.0 mm (4.65 in)
Length
152.0 mm (5.98 in)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 2
3/4-14 NPT
Supply Port 1
3/4-14 NPT (Plugged)
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.37 lb
