288221N

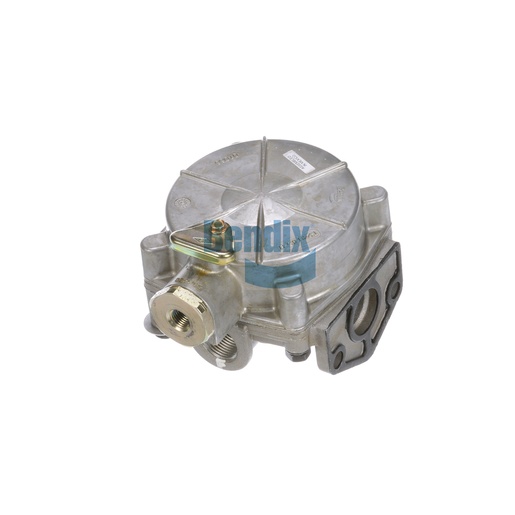

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The relay valve plays a crucial role in your vehicle's braking system by modulating air pressure to ensure smooth and efficient brake actuation. This valve is engineered for durability and reliability, making it an essential component for maintaining optimal brake performance. With a maximum operating temperature of 200°F and a precise construction that allows for quick response times, this relay valve ensures that your brakes engage when needed without unnecessary delay. Its robust design contributes to the overall safety of your vehicle, preventing braking failures that could lead to accidents. For those in need of high-quality parts, Source One Parts Center is the ideal destination for genuine Bendix OEM parts, ensuring your commercial vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Service Port
1/4-18 NPT
Balance Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.24 lb
