288369R

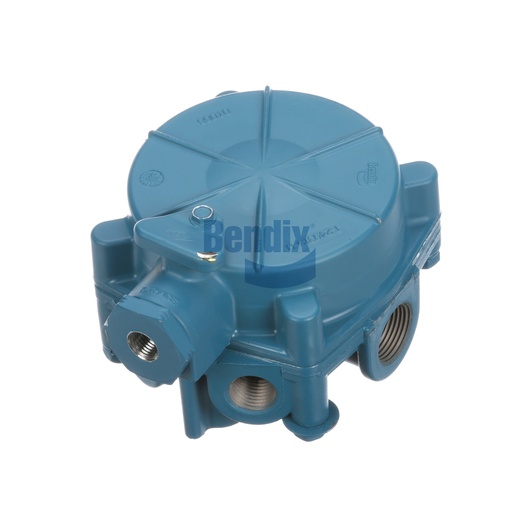

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is essential for ensuring the efficient operation of your vehicle's air brake system. This valve regulates air pressure and directs it appropriately to enhance braking performance, providing the driver with precise control. With a sturdy design that can withstand the demands of heavy-duty applications, this relay valve is built for durability and reliability. Its installation is straightforward, allowing for quick replacements and minimal downtime. By maintaining optimal performance with a quality relay valve, you enhance the safety and efficiency of your vehicle. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring that your vehicle operates with top-notch reliability and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/4-18 NPT
Service Port
1/4-18 NPT
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Width
117.3 mm (4.62 in)
Length
151.1 mm (5.95 in)
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.22 lb
