288781

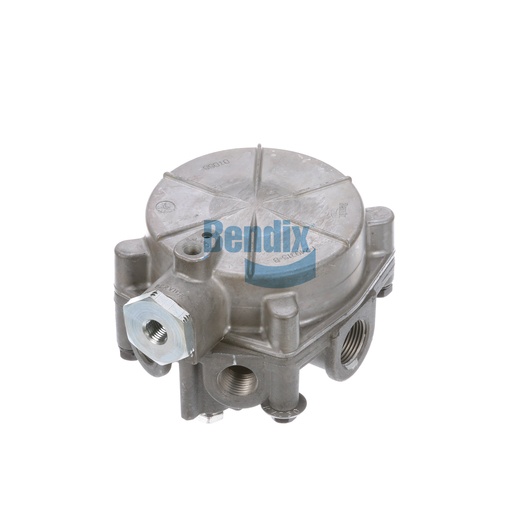

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is designed to enhance the air brake system's performance in commercial vehicles, ensuring safe and responsive braking action. This valve is built with high-quality materials and features multiple ports for efficient air management, allowing for better control and reliability in braking function. With a compact size and weighing just 1.3 kg, it is easy to install and fits seamlessly into various braking systems. The valve operates effectively across a wide range of temperatures, promoting durability and consistent performance regardless of conditions. Its robust design minimizes the risk of breakdowns and improves the overall safety of your vehicle on the road. For those seeking the best in commercial truck parts, Source One Parts Center is the top choice for genuine Bendix OEM products, providing peace of mind with every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Service Port
1/4-18 NPT
Delivery Port 3
1/4-18 NPT (Plugged)
Balance Port
1/8-27 NPT
Height
106.2 mm (4.18 in)
Width
117.3 mm (4.62 in)
Length
151.1 mm (5.95 in)
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
2.8 lb
