288900

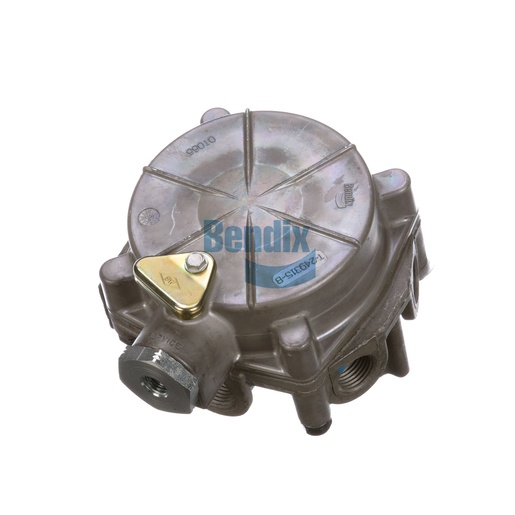

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a crucial part of the braking system, specifically designed to enhance the responsiveness and efficiency of air brakes in commercial vehicles. This valve regulates the airflow between the brake pedal and the brake chambers, ensuring a quick and smooth application of brakes. With its robust construction, it is engineered to withstand the demanding conditions of heavy-duty use, providing reliable performance over time. The relay valve plays a critical role in improving vehicle safety by facilitating consistent brake application, which is essential for maintaining control, especially when carrying heavy loads. Its compact design allows for easy installation and maintenance, making it an ideal choice for fleet operators. When you choose Source One Parts Center for your Bendix parts, you can trust that you’re getting high-quality OEM components that enhance the safety and reliability of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Delivery Port 3
1/4-18 NPT (Plugged)
Balance Port
1/8-27 NPT
Height
110.0 mm (4.33 in)
Width
118.0 mm (4.65 in)
Length
152.0 mm (5.98 in)
Maximum Operating Temperature
200 °F (93 °C)
Service Port Orientation (CW from Flange)
270°
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT (Plugged)
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.24 lb
