289395N

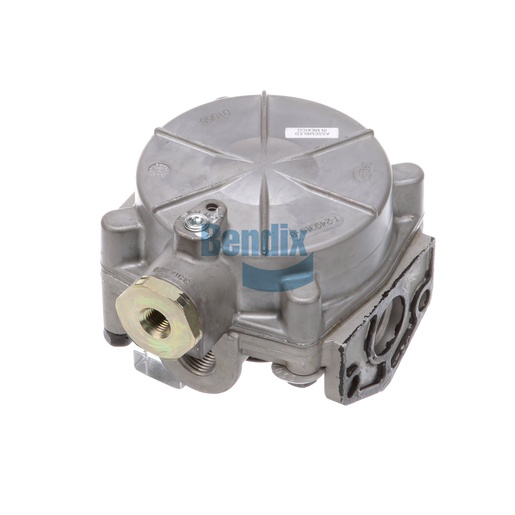

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve from Bendix is designed to provide reliable control in air brake systems, ensuring that the brakes react promptly and efficiently to driver input. This valve plays a vital role in managing air pressure, contributing to enhanced safety and performance while driving. With a weight of 1.5 kg, it is constructed for durability and reliability, making it an excellent choice for commercial vehicles. Engineered to maintain optimal performance under varying conditions, the Relay Valve helps in delivering consistent braking power. For those seeking genuine Bendix OEM parts, Source One Parts Center is your trusted partner, offering the best selection for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT (Plugged)
Service Port
1/4-18 NPT
Delivery Port 3
1/4-18 NPT (Plugged)
Balance Port
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Harmonized System (HS) Code
848120
Service Port Orientation (CW from Flange)
90°
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.37 lb
