289795N

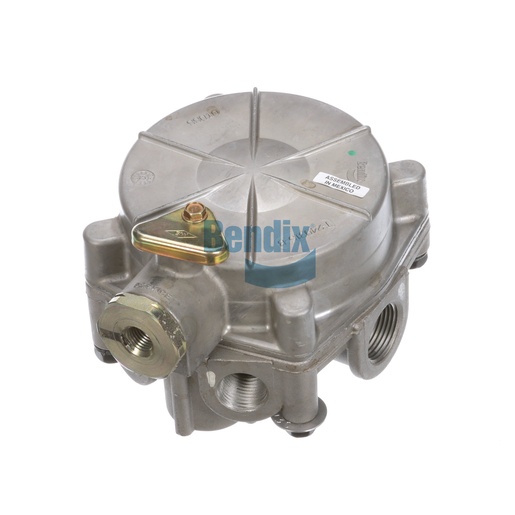

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a crucial component for ensuring the optimal operation of your vehicle's air brake system. This valve is designed to regulate air flow effectively, providing reliable and consistent braking performance. Weighing 1.5 kg, it features a compact design that allows for easy installation in various setups. Engineered for durability, the relay valve operates efficiently across a range of temperatures, ensuring that your braking system remains responsive and effective under different conditions. This component plays an essential role in maintaining air pressure, contributing to overall vehicle safety and performance. Choosing a genuine Bendix Relay Valve from Source One Parts Center guarantees you are investing in quality parts that will enhance your vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Service Port
1/4-18 NPT
Balance Port
1/8-27 NPT
Service Port Orientation (CW from Flange)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
3.0 PSI
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV030
Mounting
Standard Flange Mount - Ø 0.41 IN (2x)
Weight
3.24 lb
