$269.95
$323.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

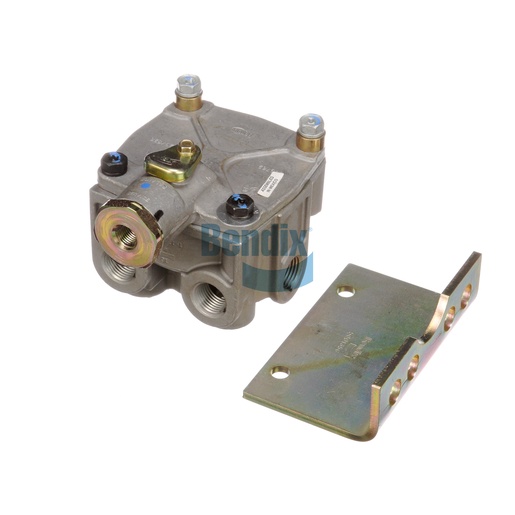

The Bendix Relay Valve is a critical component in your vehicle’s air braking system, designed to enhance the responsiveness and efficiency of brake actuation. This valve operates by managing the air supply to the brake chambers, ensuring that the brakes engage quickly and effectively when needed. With a crack pressure of 4.0 PSI, this relay valve allows for precise control over air flow, optimizing braking performance under various load conditions. Its weather-resistant design ensures reliable operation in challenging environments, making it an excellent choice for commercial vehicles operating in diverse conditions. The robust construction of this valve contributes to its longevity, reducing the cost of maintenance and replacements. For dependable and top-of-the-line truck parts, Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring your vehicle's braking system remains in peak condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Mounting
Ø .531 IN (4x)
Weight
3.59 lb
