800441

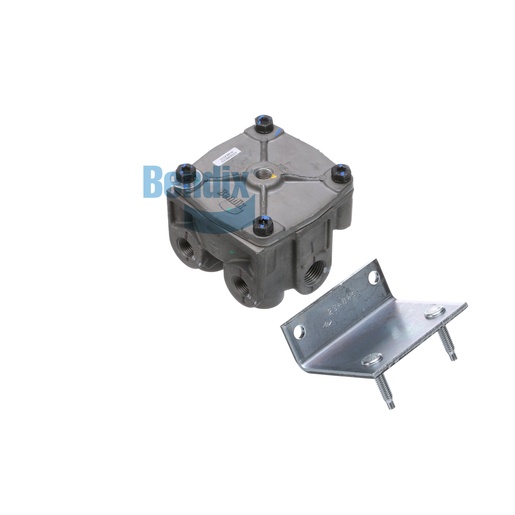

Relay Valve
Bendix

DISCONTINUED

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Relay Valve is an essential part of the Bendix air brake system, engineered to facilitate the efficient transfer of air pressure for optimal braking performance. This valve is designed for durability and reliability, making it suitable for heavy-duty applications. Weighing just 3.15 lbs, it is lightweight yet robust, ensuring that it can withstand the demands of commercial vehicle operations. The relay valve plays a critical role in controlling the air flow, helping to engage and release the brakes smoothly, which is vital for maintaining vehicle control and safety. With its precise engineering and adherence to OEM specifications, this relay valve is an excellent choice for fleet operators and truck owners alike. The component can be easily integrated into existing systems, ensuring functionality and efficiency. For those seeking the best Bendix OEM parts, Source One Parts Center is the trusted destination, providing high-quality components to keep your commercial vehicles performing at their best.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.15 lb
