DESCRIPTION

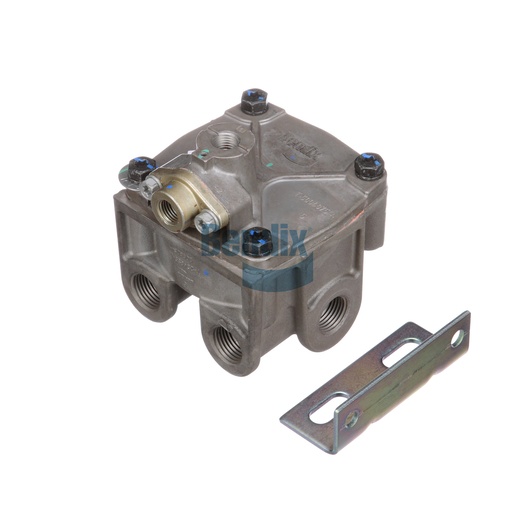

The Bendix Relay Valve is a critical part of the air brake system, ensuring efficient air distribution and control throughout your commercial vehicle. Designed to operate under a broad range of conditions, it boasts a maximum operating temperature of 200°F and a minimum of -40°F, making it ideal for diverse environments. This relay valve features a robust construction that guarantees long-lasting performance, while its compact size (weighing in at 1.4 kg) allows for easy installation within tight spaces. With precise crack pressure settings of 5.5 PSI, it ensures optimal braking response, enhancing safety and control for drivers. Furthermore, the relay valve's dual supply and delivery ports streamline the air flow, contributing to a more efficient braking system. For the best in quality and reliability, Source One Parts Center is the premier retailer for genuine Bendix OEM parts, ensuring your commercial vehicles maintain optimal performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
3 lb
