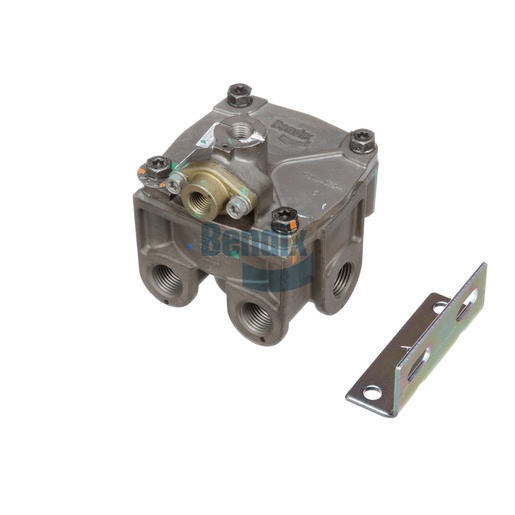

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is designed for the R-12DC air brake system, providing reliable control of the air braking process in commercial trucks. Built with a robust construction that can handle extreme operating temperatures from -40°F to 200°F, this valve is particularly effective in ensuring smooth brake operation under various conditions. With its dual supply and delivery ports, it facilitates efficient air transfer, contributing to quicker brake response times and improved overall safety. The unique design includes a dust shield exhaust port, preventing contaminants from affecting performance. This relay valve is essential for maintaining the integrity of your air brake system. When it comes to quality and reliability, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring your vehicle remains roadworthy.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.76 lb
