800473
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

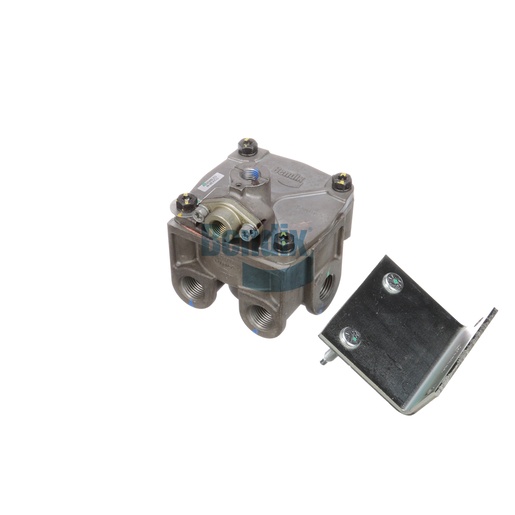

The Relay Valve is a pivotal component in your air braking system, ensuring that your commercial vehicle operates safely and efficiently. Weighing 3.37 lbs, this valve is designed to manage air flow effectively, allowing for improved braking performance under various conditions. Its durable construction ensures reliability, making it suitable for heavy-duty applications. The relay valve operates at a wide temperature range, from -40°F to 200°F, making it adaptable to different environments and conditions. By integrating this valve into your vehicle's braking system, you enhance its responsiveness and safety. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best choice, providing top-quality components tailored for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Control Port Orientation (CW from Front Face)
270°
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.37 lb
