800475

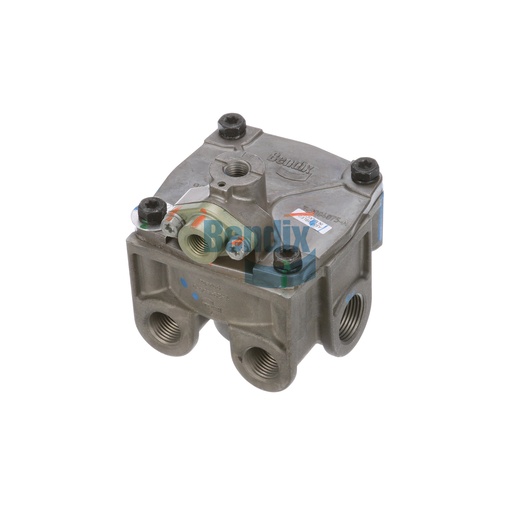

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve from Bendix is an essential component for air brake systems, designed to optimize braking performance through precise control and responsiveness. Weighing 1.5 kg, this valve features a durable design that can withstand extreme conditions, ensuring reliable operation across a wide temperature range. With multiple ports for versatile installation, it simplifies the integration into various braking systems while enhancing overall vehicle safety. This relay valve is ideal for fleet operators seeking to maintain high standards of performance and reliability in their vehicles. For sourcing genuine Bendix parts, Source One Parts Center is the best choice, offering a comprehensive selection of authentic components to meet your operational needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Balance / Primary Service Port
1/2-14 NPT
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV075
Weight
3.28 lb
