This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

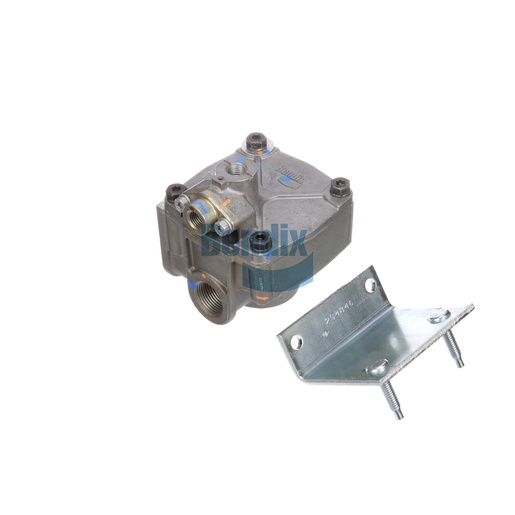

The Relay Valve is a critical component that ensures optimal air pressure management in the braking system of commercial vehicles. This valve is responsible for controlling the flow of air to the brakes, facilitating smooth and efficient braking operations. With a design that allows for quick response times, the relay valve enhances overall vehicle safety by preventing brake drag and ensuring that the brakes release completely after engagement. Constructed for durability, it can withstand harsh operating conditions while maintaining consistent performance. As an essential element of the braking system, it’s vital to choose high-quality components like this one. For authentic Bendix OEM parts, Source One Parts Center is the premier destination, offering reliable products that meet stringent industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.24 lb
