$159.95
$191.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

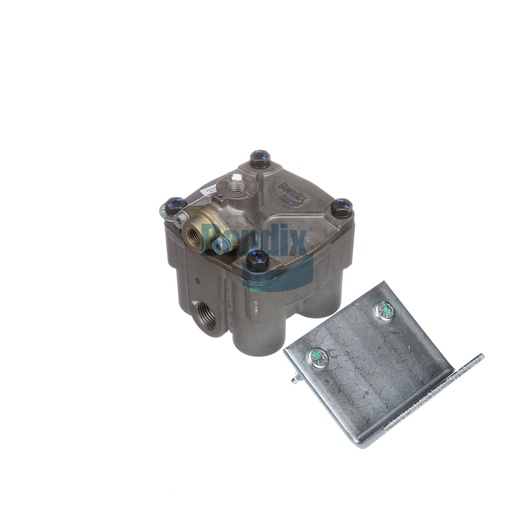

The Bendix Relay Valve is an essential component in your air brake system, designed to provide reliable control over air pressure for optimal braking performance. This valve features a robust construction capable of withstanding harsh operating conditions, with a maximum operating temperature of 200°F and a minimum of -40°F. Its efficient design allows for quick response times, ensuring that your braking system remains responsive and effective. Weighing only 1.6 kg, it is easy to install and maintain, making it a practical choice for fleet operators. This relay valve adheres to OEM specifications, ensuring a perfect fit for your vehicle. Source One Parts Center is your go-to destination for sourcing genuine Bendix OEM parts, guaranteeing that your vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
102.0 mm (4.02 in)
Length
108.0 mm (4.25 in)
Height
121.0 mm (4.76 in)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.53 lb
