$164.95
$197.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

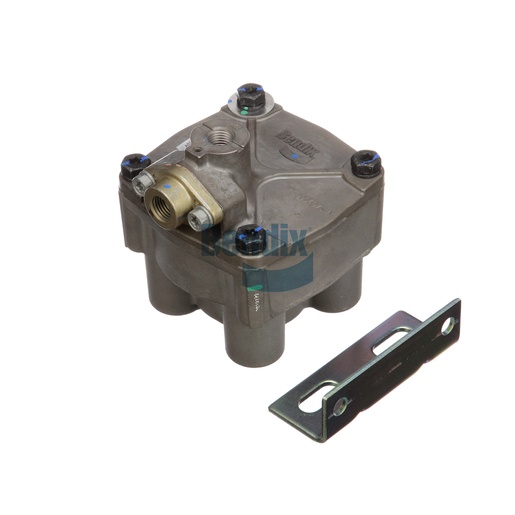

The Bendix Relay Valve is an essential component for air brake systems, optimizing pressure control and enhancing the overall performance of your vehicle's braking system. With a maximum operating temperature of 200°F and a minimum of -40°F, this valve is designed to perform reliably in extreme conditions, ensuring that your brakes respond promptly when needed. Featuring multiple delivery ports, this valve provides flexibility in installation and integration into various braking systems. Its compact design, weighing just 2.82 lbs, makes it easy to install without compromising on performance. The relay valve's unique configuration allows for efficient air distribution, contributing to smoother braking and improved vehicle control. For those looking to purchase genuine Bendix OEM parts, Source One Parts Center is the best choice, offering a wide selection of reliable components to keep your fleet on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.82 lb
