$199.95
$239.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

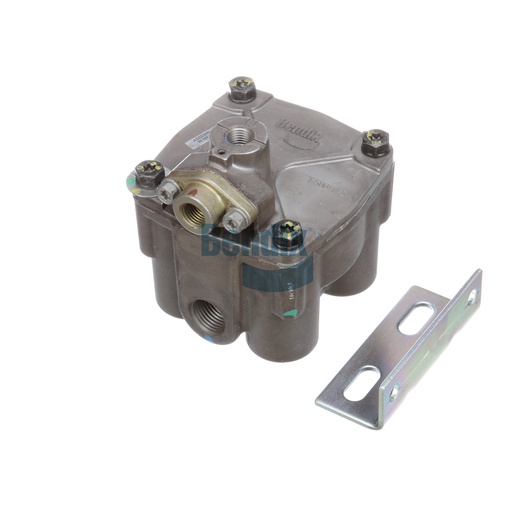

The Relay Valve from Bendix is a crucial component in the air brake system, designed to enhance the efficiency and effectiveness of brake operations in commercial vehicles. This valve regulates the air pressure used to activate the brakes, ensuring that they respond promptly and effectively to driver commands. Constructed from durable materials, the relay valve is built to withstand the rigorous demands of heavy-duty applications, providing reliable performance over time. Its design simplifies installation and maintenance, making it an ideal choice for fleet operators who require dependable components. The relay valve's precise engineering contributes to improved brake responsiveness, reducing stopping distances and enhancing safety on the road. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best option, providing authentic components that ensure superior performance and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.93 lb
