This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

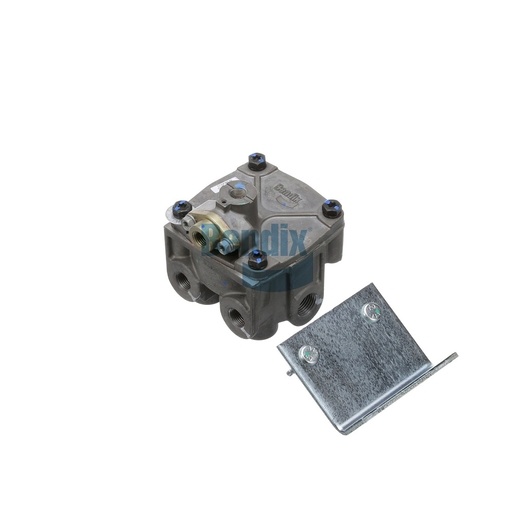

The Bendix Relay Valve is a vital component in the air brake system, optimizing air flow and pressure for enhanced braking performance. Designed for heavy-duty applications, this relay valve features a robust construction that ensures reliability and durability under extreme conditions. With a maximum operating temperature of 200°F and a crack pressure of 4.0 PSI, it is engineered to maintain optimal performance even in the most demanding environments. The valve's efficient body configuration allows for precise control of air delivery, contributing to the overall safety and effectiveness of the braking system. When it comes to sourcing high-quality components, Source One Parts Center is your trusted supplier for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
100.6 mm (3.96 in)
Length
108.2 mm (4.26 in)
Height
130.3 mm (5.13 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.26 lb
