This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

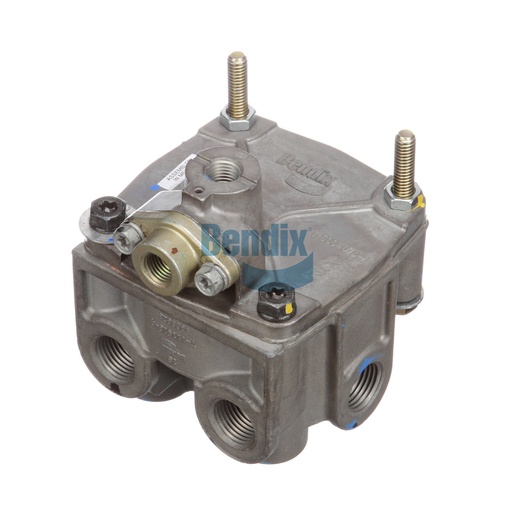

The Bendix Relay Valve is a vital component in the air brake system of commercial vehicles, allowing for precise control over air flow and ensuring optimal braking performance. This valve is engineered to deliver quick and reliable activation of the brakes, enhancing vehicle safety and responsiveness during operation. With a durable design that can handle temperatures from -40°F to 200°F, this relay valve is built to perform reliably in various conditions. Its compact size and straightforward installation process make it an excellent choice for fleet maintenance, reducing downtime and ensuring that vehicles remain operational. The Bendix Relay Valve enhances the overall efficiency of the air brake system, making it an indispensable part of your vehicle's braking components. Source One Parts Center is the premier destination for sourcing genuine Bendix OEM parts, ensuring you receive high-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
102.0 mm (4.02 in)
Length
108.0 mm (4.25 in)
Height
121.0 mm (4.76 in)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Mounting Bracket Direction
Up
Weight
2.49 lb
