$174.95
$209.94

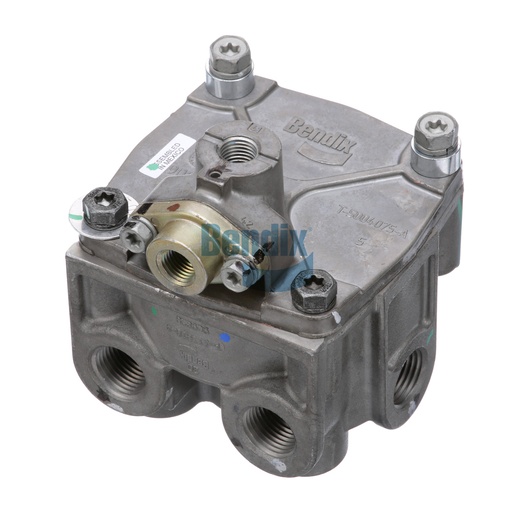

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is an essential component in air brake systems for commercial vehicles, ensuring efficient pressure modulation and control during braking operations. Designed to handle the demands of heavy-duty applications, this valve features a robust construction that guarantees reliability and longevity, even in harsh operating conditions. With precise specifications, including a maximum operating temperature of 200°F and a minimum of -40°F, this valve maintains optimal functionality across various environments. Its multiple ports allow for efficient air management, making it easy to integrate into existing systems. The valve’s compact design also facilitates straightforward installation, minimizing downtime during maintenance or replacement. For the best selection of genuine Bendix OEM parts, Source One Parts Center stands out as your trusted source, ensuring you receive high-quality components tailored for commercial vehicle performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.43 lb
