$194.95
$233.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

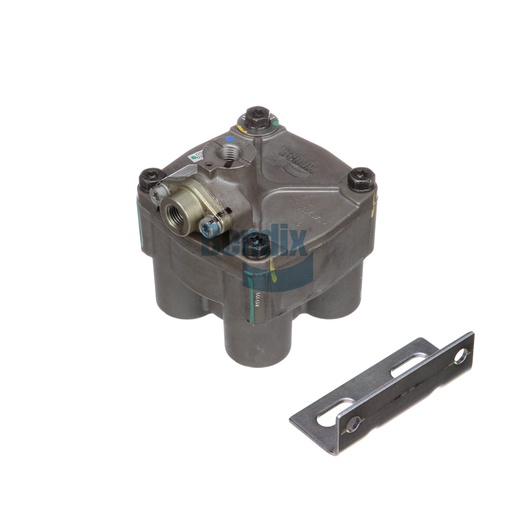

The Bendix Relay Valve is an essential component in your truck's air brake system, designed to improve braking efficiency and control. This relay valve features a body configuration that supports one supply and four delivery ports, allowing for optimal air distribution throughout the braking system. With a crack pressure of 4.0 PSI and designed for extreme temperatures, this valve ensures reliable performance under demanding conditions. Its robust construction and precise engineering enhance braking response times, making it ideal for heavy-duty applications. For those needing genuine Bendix OEM parts, Source One Parts Center offers the best selection, guaranteeing quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
100.6 mm (3.96 in)
Length
108.2 mm (4.26 in)
Height
130.3 mm (5.13 in)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.95 lb
